JZ2-H系列船用起重用三相異步電動機

JZ2-H系列船用起重用三相異步電動機（單速、雙速及三速）

JZ2-H Series Three phase Marine Asynchronous Motor For Hoisting (single speed,double speed and three speed)

產品概述（Product Overview ）

JZ2-H 系列船用起重用電動機適用于船舶上驅動各種起重機械及冶輔助設備，具有較高的過載能力和機械強度。適用于短時間或斷續周期性工作制，頻繁起動，制動及有顯著振動及有沖擊的設備。如錨機、絞盤機及絞盤等，也可作操作不頻繁的起貨機的動力。該系列電機具有性能好、體積小、噪音低、工作可靠、維修方便等特點。

JZ2-H Series three phase marine asynchronous motor for hoisting is suitable for driving various hoisting and smelting auxiliary equipments on board ship,the motors has good ability of overload and mechanical strength.it dose apply to short time or intermittent period duty,it is also used for frequent starting, braking and working with equipment which has abvious vibration and shock. such as anchor windlass,winch,capstan and so on,it can also provide power for cargo winch that is no need to operate frequently.the motor has feature of good performance, small size,low noise,reliable working and easy manitenance etc.

工作環境條件(Operating Conditions)

海拔≤1000m

Altitude should be lower than 1000m above sea level

環境溫度： -25~+45℃

Ambient temperature -25~+45℃

空氣相對濕度 ≤95%

Relative humidity should be less than 95%.

傾斜: ±22.5°

Inclination ：±22.5°

搖擺: ±22.5°

Swing：±22.5°

有鹽霧、油霧、霉菌及海水的影響

Influenced by Dew、Salt mist、Oil mist、Fungus and sea water.

有船舶和近海裝置正常營運和作業中產生的沖擊、振動的影響

Influenced by shock and vibration come from ships and offshore installation.

防護等級：IP56; 絕緣等級：F

Protection :IP56 ; Insulation :F

電壓/頻率：380V/50Hz、440V/60Hz

Voltage/Frequency: 380V/50Hz、440V/60Hz

型號說明(Type Designation)

技術數據(Technical Data)

型號 Frame Size	功率 Output	額定電流 Rated Current (A)		額定轉速 Rated Speed (r/min)		工作制 Duty	直流制動器 DC Brake			重量 weight (kg)
		380V 50Hz	440V 60Hz	380V 50Hz	440V 60Hz		制動力矩 Brake Torque (N·m)	吸上電壓/吸上電流 Pull-in VOLT/Current(V/A)	維持電壓/維持電流 Holding VOLT/Current (V/A)
		380V 50Hz	440V 60Hz	380V 50Hz	440V 60Hz		制動力矩 Brake Torque (N·m)	吸上電壓/吸上電流 Pull-in VOLT/Current(V/A)	維持電壓/維持電流 Holding VOLT/Current (V/A)
JZ2-11-4-H	1.5	4.3	3.7	1400	1680	S3-25%	24.8	128/1.19	128/1.19	66
JZ2-12-4-H	2.2	6	5.2							86
JZ2-13-4-H	3.5	8.9	7.7							77
JZ2-21-4-H	5	12	10.4				54.8	128/1.78	128/1.78	110
JZ2-21-6-H	3.5	10	8.7	900	1080					110
JZ2-22-6-H	5	13.3	11.5							122
JZ2-31-6-H	7.5	19.2	16.6				119.6	128/2.05	128/2.05	174
JZ2-32-6-H	11	26.8	23.2				119.6	128/2.05	128/2.05	195
JZ2-41-6-H	16	35	30.3				232.8	110/9	30/2.45	365
JZ2-41-8-H	11	28.9	25	695	830		232.8	110/9	30/2.45	340
JZ2-22-4/12-H	3/1.2	6.8/7.12	5.9/6.15	1350/410	1620/490	S2-30/10min	40	110/1.6	30/0.85	112
JZ2-23-4/12-H	4.3/1.7	9.5/10.1	8.2/8.73	1350/410	1620/490		40	110/1.6	30/0.85	149
JZ2-32-4/12-H	6/2.5	12.9/11.3	11.2/9.76	1350/390	1620/465		119.6	110/4.5	30/1.23	177
JZ2-33-4/12-H	8.5/3.5	17.9/14.8	15.5/12.8	1350/390	1620/465					227
JZ2-33-4/16-H	8.5/2.4	19.2/11.6	16.6/10.1	1370/310	1620/370	S2-30/15min				230
JZ2-41-4/16-H	12/3.5	25/18.2	21.6/15.7	1370/320	1640/380		232.8	110/9	30/2.45	345
JZ2-42-4/16-H	18/5	37/23.8	32/20.6	1370/320	1640/380					407
JZ2-41-4/8/16-H	7.5/7.5/5	16.8/17.8/26	14.5/15.4/22.5	1400/665/300	1680/798/360	S2-10/30/5min				365
JZ2-42-4/8/16-H	11/11/7.5	23/25.5/36	19.9/22.1/31.1							415
JZ2-51-4/8/16-H	16/16/11	33/35.2/49	28.5/30.4/42.3				510.6		30/2.46	505
JZ2-52-4/8/16-H	22/22/16	43.7/47.8/71	37.8/41.3/61.3				510.6		30/2.46	575
JZ2-61-4/8/16-H	30/30/22	60.5/69.5/96	52.3/60.1/83	1420/670/300	1700/800/360		676	110/10.47	30/2.86	850
JZ2-71-4/8/16-H	45/45/30	88.5/100/142	76.5/86.4/122.7	1420/680/320	1700/810/380		889	110/18.25	30/4.98	1210
JZ2-72-4/8/16-H	60/60/45	114/135/195	98.5/116.6/168.5	1420/720/330	1700/860/390		1350	110/18.25	30/4.98	1560
JZ2-81-4/8/16-H	85/85/64	160/169/337	138.2/168.4/291	1450/720/355	1740/870/430		3000	110/4.1	110/4.1	2800

外形安裝尺寸（Mounting and Overall Dimension）

機座號 Frame Size	型號 Type	外形及安裝尺寸 Mounting and Overall Dimension
		A	B	C	D	E	F	G	圓錐形軸伸 Conical Shaft Extension				H	K	AB	AD	HA	HD	L1	L2
									D1	G1	E1	d1
JZ2-H 1#	JZ2-11、12-4-H	190	140	85	28	60	8	24	_	_	_	_	112	14	220	190	12	275	410	485
	JZ2-13-4-H		170																440	515
JZ2-H 2#	JZ2-21-4、6-H	220	150	90	32	80	10	27					125		260	230	15	295	410	530
	JZ2-22-6、4/12-H		200																460	590
	JZ2-23-4/12-H		270																530	660
JZ2-H 3#	JZ2-31-6-H	250	200	100	42	110	12	37					150	18	300	235	20	345	560	650
	JZ2-32-6、4/12-H		280																640	730
	JZ2-33-4/12、4/16-H		380																740	830
JZ2-H 4#	JZ2-41-6、8、4/16、4/8/16-H	320	305	120	50		16	43.5					200	26	380	295		470	700	820
	JZ2-42-4/16、4/8/16-H		380																770	895
JZ2-H 5#	JZ2-51-4/8/16-H	360	360	140	60	140	18	52.9					225		430	325		510	840	990
	JZ2-52-4/8/16-H		460																940	1090
JZ2-H 6#	JZ2-61-4/8/16-H	420	440	160	70		20	62.5	M48×2	26	105	90	250	32	510	380	23	575	950	1130
JZ2-H 7#	JZ2-71-4/8/16-H	480	510	190	90	170	25	81	M60×3	35	130	110	280		560	410		600	1060	1255
	JZ2-72-4/8/16-H		660																1200	1535
JZ2-H 8#	JZ2-81-4/8/16-H	508	508	216					–	–	–	–	315	30	628	485	20	750	1150	1380

機座號 Frame Size	型號 Type	外形及安裝尺寸 Mounting and Overall Dimension
		D	E	F	G	圓錐形軸伸 Conical Shaft Extension				M	N	P	R	S	n	T	AD	HF	L1	L2
						D1	G1	E1	d1

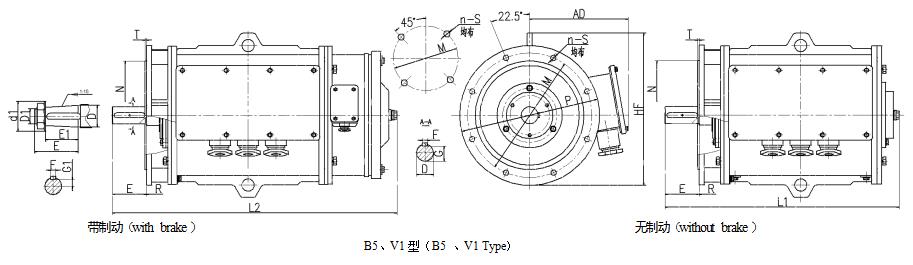

JZ2-H 1#	JZ2-11、12-4-H	28	60	8	24	_	_	_	_	265	230	300	0±2	15	4	4	190	340	410	485
	JZ2-13-4-H																		440	515
JZ2-H 2#	JZ2-21-4、6-H	32	80	10	27												230	345	410	530
	JZ2-22-6、4/12-H																		460	590
	JZ2-23-4/12-H																		530	660
JZ2-H 3#	JZ2-31-6-H	42	110	12	37					300	250	350	0±3	19		5	235	410	560	650
	JZ2-32-6、4/12-H																		640	730
	JZ2-33-4/12、4/16-H																		740	830
JZ2-H 4#	JZ2-41-6、8、4/16、4/8/16-H	50		16	43.5					400	350	450	0±4		8		360	730	700	820
	JZ2-42-4/16、4/8/16-H																		770	895
JZ2-H 5#	JZ2-51-4/8/16-H	60	140	18	52.9					500	450	550					370	780	840	990
	JZ2-52-4/8/16-H																		940	1090
JZ2-H 6#	JZ2-61-4/8/16-H	70		20	62.5	M48×2	26	105	90								430	850	950	1130
JZ2-H 7#	JZ2-71-4/8/16-H	90	170	25	81	M60×3	35	130	110	600	550	660		24		6	480	980	1090	1530
	JZ2-72-4/8/16-H

注：本產品樣本中，所有產品數據參數僅供參考，如有疑問請與工廠聯系，并以定貨時提供給用戶的確認資料為準。

Note：All data shown on this catalogue is just for reference, all the data should be confirmed by final order, if you have any other questions, please contact us.
