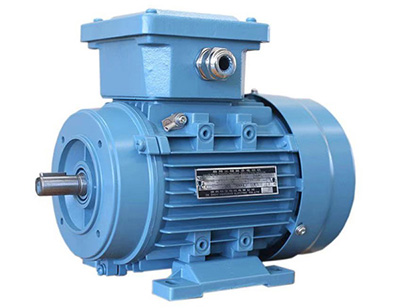

Y-H系列船用三相異步電動機

Y-H系列船用三相異步電動機（鋁質機殼：機座號50～132）

Y-H Series Three phase Marine Asynchronous Motor(Aluminum enclosure:Frame Size50~132)

Y-H系列是全封閉，自扇冷鼠籠式船用三相異步電動機，廣泛用于船舶上作驅動之用如中小型機床、風機等機械的動力裝置。該系列電動機性能優良、節能省電、結構可靠、通用性強。

Y-H series motors are totally-enclosed, fan cooled three phase squirrel caged type. the motors are suitable for driving various machines on ships such as small size machine tool、fan and etc. the motors has advantage of high performance、energy-saving 、reliable structure and universally working .

工作環境條件(Operating Conditions)

海拔≤1000m

Altitude should be lower than 1000m above sea level

環境溫度： 0~+45℃

Ambient temperature 0~+45℃

空氣相對濕度 ≤95%

Relative humidity should be less than 95%.

傾斜: ±30°

Inclination ：±30°

搖擺: ±22.5°

Swing：±22.5°

有鹽霧、油霧、霉菌及海水的影響

Influenced by Dew、Salt mist、Oil mist、Fungus and sea water.

有船舶和近海裝置正常營運和作業中產生的沖擊、振動的影響

Influenced by shock and vibration come from ships and offshore installation.

外殼：鑄造鋁

Enclosure: casting aluminum

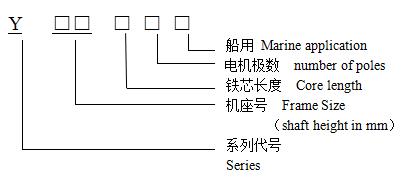

型號說明(Type Designation)

軸承（Bearing）

機座號	極數	軸承規格	軸承尺寸內徑外徑寬度
50	2、4	6200-2RS	10309
56	2、4	6200-2RS	10309
63	2、4	6201-2RS	123210
71	2、4、6	6202-2RS	153511
80	2、4、6	6204-2RS	204714
90	2、4、6	6205-2RS	255215
100	2、4、6	6206-2RS	306216
112	2、4、6	6206-2RS	306216
132	2、4、6、8	6208-2RS	408018

技術數據(Technical Data)

型號 Type	功率 Output (kW)	電流 Rated Current(A)		轉速 Rated Speed r/min		效率 Effi. %		功率因數 COSφ		起動電流/額定電流 Locked-rotor current VS Rated current Ik/In	起動轉矩/額定轉矩 Locked-rotor torque VS Rated torque Tk/Tn	zui大轉矩/額定轉矩 Breakdown torque VS Rated torque Tm/Tn
型號 Type	功率 Output (kW)	380V 50Hz	440V 60Hz	380V 50Hz	440V 60Hz	380V 50Hz	440V 60Hz	380V 50Hz	440V 60Hz	起動電流/額定電流 Locked-rotor current VS Rated current Ik/In
Y501-2-H	0.04	0.17	0.15	2800	3290	55	55	0.65	0.65	6	2.3	2.4
Y502-2-H	0.06	0.23	0.2	2800	3290	60	60	0.66	0.66
Y501-4-H	0.025	0.17	0.15	1400	1640	42	42	0.53	0.53
Y502-4-H	0.04	0.23	0.2	1400	1640	50	50	0.54	0.54
Y561-2-H	0.09	0.32	0.28	2800	3290	62	62	0.68	0.68
Y562-2-H	0.12	0.38	0.33	2800	3290	67	67	0.71	0.71
Y561-4-H	0.06	0.28	0.24	1400	1640	56	56	0.58	0.58
Y562-4-H	0.09	0.39	0.34	1400	1640	58	58	0.61	0.61
Y631-2-H	0.18	0.52	0.45	2800	3300	69	69	0.75	0.75		2.2
Y632-2-H	0.25	0.69	0.6	2800	3300	72	72	0.78	0.78
Y631-4-H	0.12	0.44	0.38	1400	1650	60	60	0.63	0.63
Y632-4-H	0.18	0.62	0.54	1400	1650	64	64	0.66	0.66
Y711-2-H	0.37	0.99	0.87	2800	3380	73.5	73.5	0.8	0.8
Y712-2-H	0.55	1.38	1.2	2800	3380	75.5	75.5	0.82	0.82
Y711-4-H	0.25	0.78	0.67	1400	1660	67	67	0.68	0.68
Y712-4-H	0.37	1.12	0.97	1400	1660	69.5	69.5	0.72	0.72
Y711-6-H	0.18	0.74	0.64	880	1090	56	56	0.66	0.66	4	1.9	2
Y712-6-H	0.25	0.95	0.82	880	1090	59	59	0.68	0.68	4	1.9	2
Y80M1-2-H	0.75	1.8	1.6	2820	3460	75	76.5	0.84	0.82	6.1	1.9	2.1
Y80M2-2-H	1.1	2.6	2.2	2820	3460	76.5	77.5	0.85	0.85	7	1.9
Y80M1-4-H	0.55	1.5	1.4	1390	1710	72.5	74	0.75	0.71	5.2	2
Y80M2-4-H	0.75	2.1	1.8	1390	1710	74	76	0.75	0.72	6	1.9
Y80M1-6-H	0.37	1.31	1.13	890	1110	63	63	0.7	0.7	4
Y80M2-6-H	0.55	1.7	1.47	890	1110	66	66	0.72	0.72	4
Y90S-2-H	1.5	3.5	3.1	2840	3470	79.5	80	0.82	0.85	7
Y90L-2-H	2.2	4.9	4.3	2840	3470	82.5	83.5	0.83	0.8	7
Y90S-4-H	1.1	2.7	2.4	1400	1710	78	79	0.78	0.75	6
Y90L-4-H	1.5	3.6	3.2	1400	1710	79	80.5	0.8	0.77	6
Y90S-6-H	0.75	2.2	2	910	1130	72.5	74	0.7	0.67	5.5	1.8	2
Y90L-6-H	1.1	3.2	2.9	910	1130	72.5	74	0.71	0.68	5.5	1.8	2
Y100L-2-H	3	6.2	5.4	2880	3490	84	84	0.87	0.86	7.5	1.9	2.1
Y100L1-4-H	2.2	5	4.5	1420	1730	81.5	82.5	0.81	0.78	7
Y100L2-4-H	3	6.8	5.9	1420	1730	83	85	0.81	0.78	7
Y100L-6-H	1.5	4	3.5	940	1150	77.5	79.5	0.73	0.7	5.5	1.8	2
Y112M-2-H	4	8.2	7.2	2890	3500	86.5	87	0.86	0.84	7.5	1.9	2.1
Y112M-4-H	4	8.9	7.7	1440	1750	84.5	86	0.81	0.79	7	1.9	2.1
Y112M-6-H	2.2	5.8	5.2	940	1150	79.5	82	0.72	0.68	6.5	1.8	2
Y132S1-2-H	5.5	11	9.6	2900	3520	86.5	86	0.88	0.87	7.5	1.5
Y132S2-2-H	7.5	14.6	12.9	2900	3520	87.5	87	0.89	0.88	7.5	1.5
Y132S-4-H	5.5	11.7	10	1440	1750	86	88	0.83	0.82	7	1.8
Y132M-4-H	7.5	15.4	13.2	1440	1750	87	88.5	0.85	0.84	7	1.8
Y132S-6-H	3	7.2	6.4	960	1170	83.5	83.5	0.76	0.74	6.5	1.8
Y132M1-6-H	4	9.5	8.2	960	1170	84	86	0.76	0.74
Y132M2-6-H	5.5	12.5	10.7	960	1170	86	87.5	0.78	0.77
Y132S-8-H	2.2	5.8	5.2	710	860	80	81	0.72	0.68	6	1.7	1.9
Y132M-8-H	3	7.6	6.8	710	860	82.5	83.5	0.73	0.69	6	1.7	1.9

電動機安裝結構型式（Mounting Arrangement）

B3型 — 機座有底腳、端蓋無凸緣；

B3 Type — Frame with foot and endshield without flange;

B35型 — 機座有底腳、端蓋有大凸緣，安裝孔為通孔；

B35 Type — Frame with foot and flange with big rabbet and through holes.

B34型 — 機座有底腳、端蓋有小凸緣，安裝孔為絲孔；

B34 Type — Frame with foot and flange with small rabbet and tapped holes.

B5型—機座無底腳、端蓋有大凸緣，安裝孔為通孔.

B5 Type — Frame without foot and flange with big rabbet and through holes.

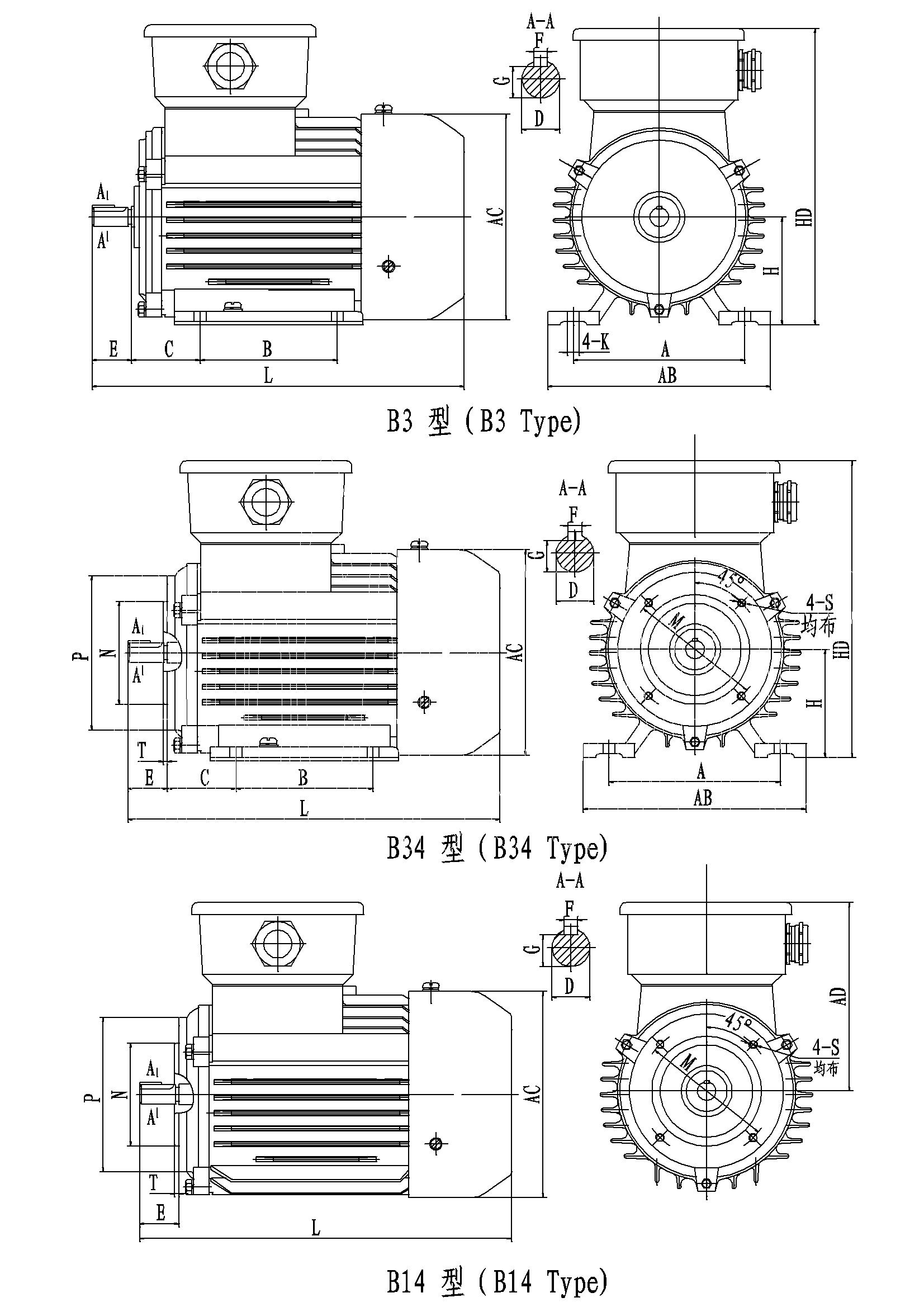

外形及安裝尺寸
(Mounting and Overall Dimensions)

機座號 Frame Size	外形及安裝尺寸 Mounting and Overall Dimension
	B3、B34									B14、B34					B3、B34			B14	L
	A	B	C	D	E	F	G	H	K	M	N	P	S	T	AB	AC	HD	AD	L
50	80	63	32	9	20	3	7.2	50	6	55	40	70	M5	2.5	100	110	125	100	175
56	90	71	36	9	20	3	7.2	56	6	65	50	80			115	120	135	110	190
63	100	80	40	11	23	4	8.5	63	7	75	60	90			130	130	165	125	250
71	112	90	45	14	30	5	11	71	7	85	70	105	M6		145	145	180	140	275
80	125	100	50	19	40	6	16	80	10	100	80	120	M6	3	160	165	200	150	300
90S	140	100	56	24	50	8	20	90		115	95	140	M8		180	185	240	160	335
90L	140	125	56	24	50		20	90		115	95	140			180	185	240	160	365
100L	160	140	63	28	60		24	100	12	130	110	160		3.5	205	215	290	185	385
112M	190		70	28	60		24	112		130	110	160			245	240	320	195	405
132S	216		89	38	80	10	33	132		165	130	200	M10		280	275	365	245	500
132M	216	178	89	38	80	10	33	132		165	130	200	M10		280	275	365	245	540

機座號 Frame Size	外形及安裝尺寸 Mounting and Overall Dimension
	B35									B35、B5					B35			B5	L
	A	B	C	D	E	F	G	H	K	M	N	P	S	T	AB	AC	HD	AD	L
63	100	80	40	11	23	4	8.5	63	7	115	95	140	10	3	130	130	165	125	250
71	112	90	45	14	30	5	11	71	7	130	110	160	10	4	145	145	180	140	275
80	125	100	50	19	40	6	15.5	80	10	165	130	200	12		160	165	200	150	300
90S	140	100	56	24	50	8	20	90		165	130	200			180	185	240	160	335
90L	140	125	56	24	50		20	90		165	130	200			180	185	240	160	365
100L	160	140	63	28	60		24	100	12	215	180	250	15	4	205	215	290	185	385
112M	190		70	28	60		24	112		215	180	250			245	240	320	195	405
132S	216		89	38	80	10	33	132		265	230	300			280	275	365	245	500
132M	216	178	89	38	80	10	33	132		265	230	300			280	275	365	245	540

注：本產品樣本中，所有產品數據參數僅供參考，如有疑問請與工廠聯系，并以定貨時提供給用戶的確認資料為準。
Note：All data shown on this catalogue is just for reference, all the data should be confirmed by final order, if you have any other questions, please contact us.
