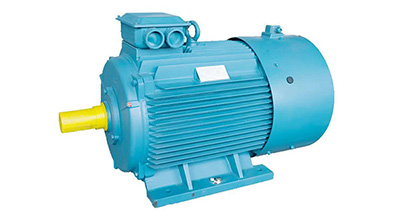

YVP-H系列船用變頻調速三相異步電動機

YVP-H系列船用變頻調速三相異步電動機（機座號80～355）

YVP-H Series Three phase Marine Asynchronous Motor of Variable Frquency Speed Contorl (Frame Size80~315)

產品概述（Product Overview ）

YVP-H 系列電動機是一種交流、高效、節能變頻調速船用電動機，與變頻器配合使用，是機電一體化的調速新產品。功率等級和安裝尺寸完全符合國際電工委員會（IEC）標準，適用于船舶上作驅動各種機械，如泵類、通風機、分離器、液壓機械及其它輔助設備等之用。該電機具有如下優點：

1. 效率高，節能效果明顯；

2. 調頻范圍下，能在5Hz~100Hz甚至更廣的范圍內平滑無極調速；

3. 噪聲低、振動??；

4. 起動轉矩大、起動電流小，無須附加起動設備，低頻起動對負載沖擊?。?

5. 結構簡單，運行穩定，使用可靠，維護方便；

6. 單獨裝有強迫冷卻風機，在不同的轉速下均有較好的冷卻效果；

7.應用范圍廣，可以在基頻（50Hz）以下作恒轉矩、基頻（50Hz）以上作恒功率運行，基本可以取代任何一種調速產品。

YVP-H series is high efficiency,energy-saving,variable frequency speed contorl of AC marine motors. it is a new mechatronics products of speed contorl. the output and mounting dimension are designed accord with IEC standard. the motors are used to drive various motor on ships, such as pump,ventilator,seperator, hydraulic engines and other auxiliary equipment. motor's feature is as followed:

1. high efficiency,energy-saving;

2. smooth and stepless speed could be contolled during 5Hz~100Hz even more than that;

3. low noise、small vibration;

4. high starting torque,low starting current, without additional starter,small impact on load during starting with low frequency.

5. simple construction,stable working, reliable operation, easy maintenance;

6. there is seperated forced cooling fan, so as to get good cooling effect no matter what speed.

7. wide range of application, motor could output constant torque below rated frequency(50Hz) and output constant power above rated frquency(50Hz).It can be say that the motor could displace a majority of speed contorl products.

工作環境條件(Operating Conditions)

海拔≤1000m

Altitude should be lower than 1000m above sea level

環境溫度： 0~+45℃

Ambient temperature 0~+45℃

空氣相對濕度 ≤95%

Relative humidity should be less than 95%.

傾斜: ±30°

Inclination ：±30°

搖擺: ±22.5°

Swing：±22.5°

有鹽霧、油霧、霉菌及海水的影響

Influenced by Dew、Salt mist、Oil mist、Fungus and sea water.

有船舶和近海裝置正常營運和作業中產生的沖擊、振動的影響

Influenced by shock and vibration come from ships and offshore installation.

防護等級：IP54; 絕緣等級：F

Protection :IP54 ; Insulation :F

電壓/頻率：380V/50Hz

Voltage/Frequency: 380V/50Hz

調頻范圍(Range of frequency)：

機座號(frame size)：80~225：恒轉矩(constant torque)：5~50Hz；恒功率(constant power)：50~100Hz；

機座號(frame size)：250~355：恒轉矩(constant torque)：3~50Hz；恒功率(constant power)：50~100Hz；

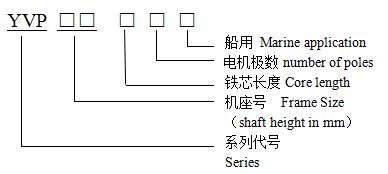

型號說明(Type Designation)

軸承（Bearing）

機座號 Frame Size	極數 No. of poles	軸承 Bearings
		主軸伸端 Driving end		非軸伸端
		B3、B5、B35	V1	Non-Driving end
80	2，4	6204-2RS/C3		6204-2RS/C3
90	2，4，6	6205-2RS/C3		6205-2RS/C3
100	2，4，6	6206-2RS/C3		6206-2RS/C3
112	2，4，6，8	6206-2RS/C3		6206-2RS/C3
132	2，4，6，8	6208-2RS/C3		6208-2RS/C3
160	2，4，6，8	6309-2RS/C3		6309-2RS/C3
180	2，4，6，8	6311/C3		6311/C3
200	2，4，6，8	6312/C3		6312/C3
225	2 / 4，6，8	6312/C3/6313/C3		6312/C3
250	2 / 4，6，8	6313/C3/6314/C3		6313/C3
280	2/4，6，8	6314/C3/6317/C3		6314C3
315	2/4，6，8	6317/C3/N319/Z2	7317ACJ/7319ACJ	6317/C3/6319/Z2
355	2/4，6，8	6319/C3/N322/Z2	7319ACJ/7322ACJ	6319/C3/6322/Z2

技術數據(Technical Data)

型號 Type	標稱功率 Nominal output (kW)	標稱電流 Nominal current （A）	額定轉速 Rated speed （r/min）	額定轉矩 Rated Torque （N·m）	zui大轉矩額定轉矩 Maximum torque vs Rated torque	恒轉矩變頻范圍 Frequency range of constant torque	恒功率變頻范圍 Frqeuency range of constant power



YVP80M1-4-H	0.55	1.5	1390	3.5	2.3	5～50	50～100
YVP80M2-4-H	0.75	2.1	1390	4.7
YVP90S-4-H	1.1	2.7	1400	7
YVP90L-4-H	1.5	3.6	1400	9.5
YVP100L1-4-H	2.2	5	1420	14
YVP100L2-4-H	3	6.8	1420	19
YVP112M-4-H	4	8.9	1440	25.4
YVP132S-4-H	5.5	11.7	1440	35
YVP132M-4-H	7.5	15.4	1440	47.7
YVP160M-4-H	11	22.6	1460	70
YVP160L-4-H	15	30.5	1460	95.5
YVP180M-4-H	18.5	35.9	1470	117.1
YVP180L-4-H	22	42.2	1470	140.9
YVP200L-4-H	30	57.3	1476	190.9
YVP225S-4-H	37	70.2	1481	235.5
YVP225M-4-H	45	84	1480	286.4
YVP250M-4-H	55	104	1480	350.1		3～50
YVP280S-4-H	75	139	1480	477.7
YVP280M-4-H	90	164	1480	572.9
YVP315S-4-H	110	201	1480	700.2	2.2
YVP315M-4-H	132	240	1480	840.3
YVP315L1-4-H	160	289	1480	1018
YVP315L2-4-H	200	361	1480	1273
YVP355M-4-H	250	465	1480	1592
YVP355L-4-H	315	582	1480	2005

型號 Type	標稱功率 Nominal output (kW)	標稱電流 Nominal current （A）	額定轉速 Rated speed （r/min）	額定轉矩 Rated Torque （N·m）	zui大轉矩額定轉矩 Maximum torque vs Rated torque	恒轉矩變頻范圍 Frequency range of constant torque	恒功率變頻范圍 Frqeuency range of constant power



YVP90S-6-H	0.75	2.2	910	7.2	2.1	5～50	50～100
YVP90L-6-H	1.1	3.2	910	10.5
YVP100L-6-H	1.5	4	940	14.3
YVP112M-6-H	2.2	5.8	940	21
YVP132S-6-H	3	7.2	960	28.7
YVP132M1-6-H	4	9.5	960	38.2
YVP132M2-6-H	5.5	12.5	960	52.5
YVP160M-6-H	7.5	17.1	970	71.6
YVP160L-6-H	11	25	970	105.1
YVP180L-6-H	15	33	970	143.2
YVP200L1-6-H	18.5	37.6	980	176.7
YVP200L2-6-H	22	44.7	980	210.1
YVP225M-6-H	30	61.1	985	286.5
YVP250M-6-H	37	71	980	353.4		3～50
YVP280S-6-H	45	86.4	980	429.8	2
YVP280M-6-H	55	103	980	525.3
YVP315S-6-H	75	141	980	716.3
YVP315M-6-H	90	169	980	859.5
YVP315L1-6-H	110	206	980	1051
YVP315L2-6-H	132	246	980	1261
YVP355M1-6-H	160	302	980	1528
YVP355M2-6-H	200	377	980	1910
YVP355L-6-H	250	469	980	2388

型號 Type	標稱功率 Nominal output (kW)	標稱電流 Nominal current （A）	額定轉速 Rated speed （r/min）	額定轉矩 Rated Torque （N·m）	zui大轉矩額定轉矩 Maximum torque vs Rated torque	恒轉矩變頻范圍 Frequency range of constant torque	恒功率變頻范圍 Frqeuency range of constant power



YVP132S-8-H	2.2	5.8	710	28	2	5～50	50～100
YVP132M-8-H	3	7.6	710	38.2
YVP160M1-8-H	4	10.5	720	50.9
YVP160M2-8-H	5.5	13.4	720	70
YVP160L-8-H	7.5	17.7	720	95.5
YVP180L-8-H	11	25.6	730	140.1
YVP200L-8-H	15	33.3	729	191
YVP225S-8-H	18.5	40.3	735	235.6
YVP225M-8-H	22	47.4	734	278.1
YVP250M-8-H	30	64.7	730	382		3～50
YVP280S-8-H	37	79.8	740	471.1
YVP280M-8-H	45	94.8	740	573
YVP315S-8-H	55	113.5	740	700.3
YVP315M-8-H	75	152	740	955
YVP315L1-8-H	90	179	740	1146
YVP315L2-8-H	110	218	740	1400
YVP355M1-8-H	132	265	740	1681
YVP355M2-8-H	160	320	740	2037
YVP355L-8-H	200	399	740	2547

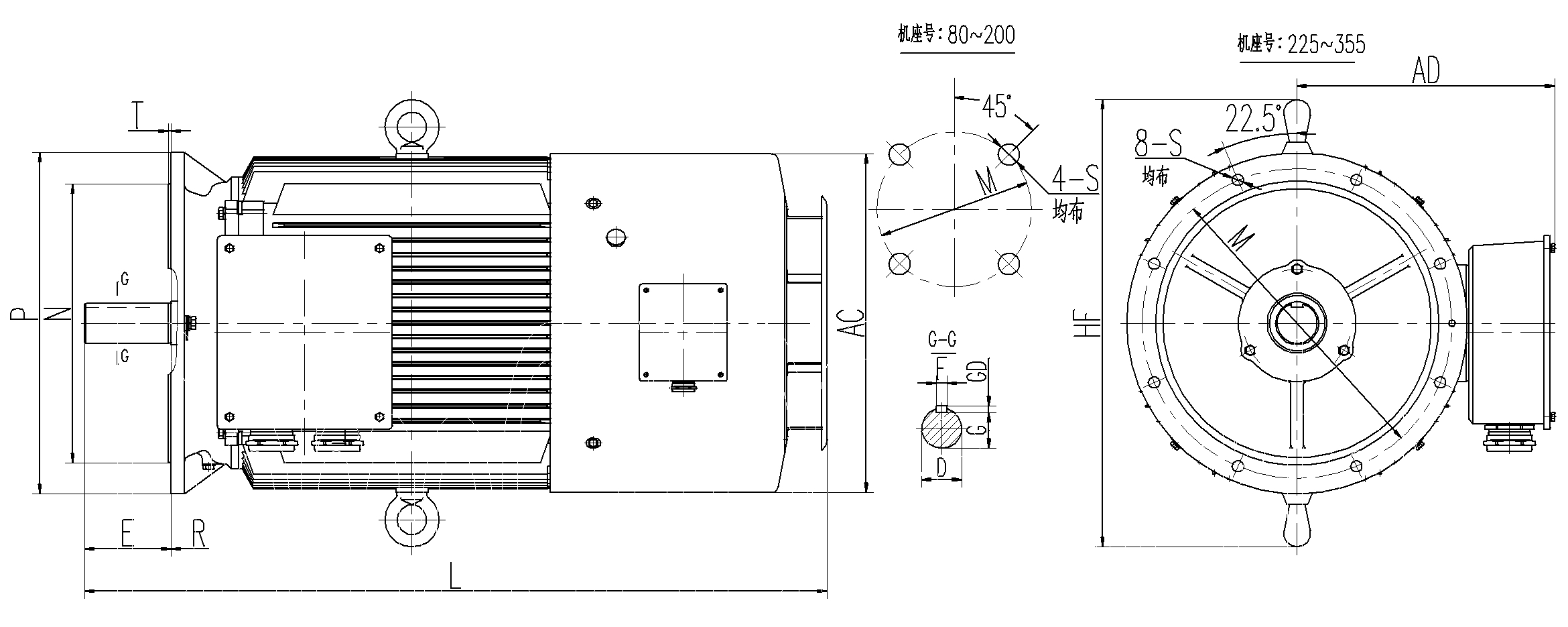

外形及安裝尺寸

(Mounting and Overall Dimensions)

機座號 Frame Size	安裝及外形尺寸 Mounting and overall dimensions
	A	B	C	D	E	F	G	GD	H	K	AB	AC	AD	HD	L
80M	125	100	50	19	40	6	15.5	6	80	10	165	175	160	240	350
90S	140		56	24	50	8	20	7	90		180	195	175	270	400
90L		125													430
100L	160	140	63	28	60		24		100	12	205	215	185	290	465
112M	190		70						112		245	240	195	320	490
132S	216		89	38	80	10	33	8	132		280	275	245	365	430
132M		178													590
160M	254	210	108	42	110	12	37		160	15	330	330	270	440	660
160L		254													715
180M	279	241	121	48		14	42.5	9	180		355	380	290	475	810
180L		279													850
200L	318	305	133	55		16	49	10	200	19	395	420	355	525	890
225S	356	286	149	60	140	18	53	11	225		435	470	370	580	930
225M		311													970
250M	406	349	168	65	140	18	58	11	250	24	490	510	455	650	1050
280S	457	368	190	75		20	67.5	12	280		550	580	470	705	1100
280M		419													1160
315S	508	406	216	80	170	22	71	14	315	28	744	645	576	875	1330
315M		457													1470
315L		508
355M	610	560	254	95		25	86	14	355	28	740	750	680	1045	1750
355L		630

機座號 Frame size	安裝及外形尺寸 Mounting and overall dimensions
	A	B	C	D	E	F	G	GD	H	K	M	N	P	R	S	T	AB	AC	AD	HD	HD＇	L

80M	125	100	50	19	40	6	15.5	6	80	10	165	130	200	0±1.5	12	3.5	165	175	160	205	240	350
90S	140		56	24	50	8	20	7	90								180	195	175	225	270	400
90L		125																				430
100L	160	140	63	28	60		24		100	12	215	180	250	0±2.0	15	4	205	215	185	250	290	465
112M	190		70						112								245	240	195	270	320	490
132S	216		89	38	80	10	33	8	132		265	230	300				280	275	245	320	365	530
132M		178																				590
160M	254	210	108	42	110	12	37		160	15	300	250	350	0±3.0	19	5	330	330	270	385	440	660
160L		254																				715
180M	279	241	121	48		14	42.5	9	180								355	380	290	425	475	810
180L		279																				850
200L	318	305	133	55		16	49	10	200	19	350	300	400				395	420	355	475	525	890
225S	356	286	149	60	140	18	53	11	225		400	350	450	0±4.0			435	470	370	530	580	930
225M		311																				970
250M	406	349	168	65	140	18	58	11	250	24	500	450	550				490	510	455	570	650	1050
280S	457	368	190	75		20	67.5	12	280								550	580	470	640	705	1100
280M		419																				1160
315S	508	406	216	80	170	22	71	14	315	28	600	550	660		24	6	744	645	576	865	875	1330
315M		457																				1450
315L		508																				1450
355M	610	560	254	95		25	86	14	355		740	680	800				740	750	680	1035	1045	1750
355L		630

機座號 Frame Size	安裝及外形尺寸 Mounting and overall dimensions
	D	E	F	G	GD	M	N	P	S	R	T	AC	AD	HF	L

80M	19	40	6	15.5	6	165	130	200	12	0±1.5	3.5	175	160	260	390
90S	24	50	8	20	7							195	175	270	445
90L															480
100L	28	60		24		215	180	250	15	0±2.0	4	215	185	300	510
112M												240	195	320	535
132S	38	80	10	33	8	265	230	300				275	245	380	580
132M															635
160M	42	110	12	37		300	250	350	19	0±3.0	5	330	270	450	715
160L															770
180M	48		14	42.5	9							380	290	490	870
180L															910
200L	55		16	49	10	350	300	400				420	355	550	950
225S	60	140	18	53	11	400	350	450		0±4.0		470	370	610	995
225M															1020
250M	65	140	18	58	11	500	450	550				510	455	645	1110
280S	75		20	67.5	12							580	470	720	1170
280M															1230
315S	80	170	22	71	14	600	550	660	24		6	645	576	900	1450
315M															1600
315L															1600
355M	95		25	86	14	740	680	800				750	680	1035	1800
355L															1800

機座號 Frame size	安裝及外形尺寸 Mounting and overall dimensions
	D	E	F	G	GD	M	N	P	R	S	T	AC	AD	HF	L

80M	19	40	6	15.5	6	165	130	200	0±1.5	12	3.5	175	160	230	350
90S	24	50	8	20	7							195	175	235	400
90L															430
100L	28	60		24		215	180	250	0±2.0	15	4	215	185	275	465
112M												240	195	285	490
132S	38	80	10	33	8	265	230	300				275	245	340	530
132M															590
160M	42	110	12	37		300	250	350	0±3.0	19	5	330	270	400	660
160L															715
180M	48		14	42.5	9							380	290	435	810
180L															850
200L	55		16	49	10	350	300	400				420	355	480	890
225S	60	140	18	53	11	400	350	450	0±4.0			470	370	530	930
225M															970

注：本產品樣本中，所有產品數據參數僅供參考，如有疑問請與工廠聯系，并以定貨時提供給用戶的確認資料為準。

Note：All data shown on this catalogue is just for reference, all the data should be confirmed by final order, if you have any other questions, please contact us.
